The first question every buyer asks us about an electromagnetic flow meter is the price. The second question — usually after buying the wrong one elsewhere — is why the reading is unstable. Both questions have the same answer: flow meter price in India 2026 follows sizing, and sizing follows your actual process conditions.
This guide explains the electromagnetic flow meter price in India buyers can expect, what drives the price up or down, and how proper electromagnetic flow meter sizing ensures you pay for what your application needs — nothing more. For the complete working principle and technology details, see our Electromagnetic Flow Meter guide.

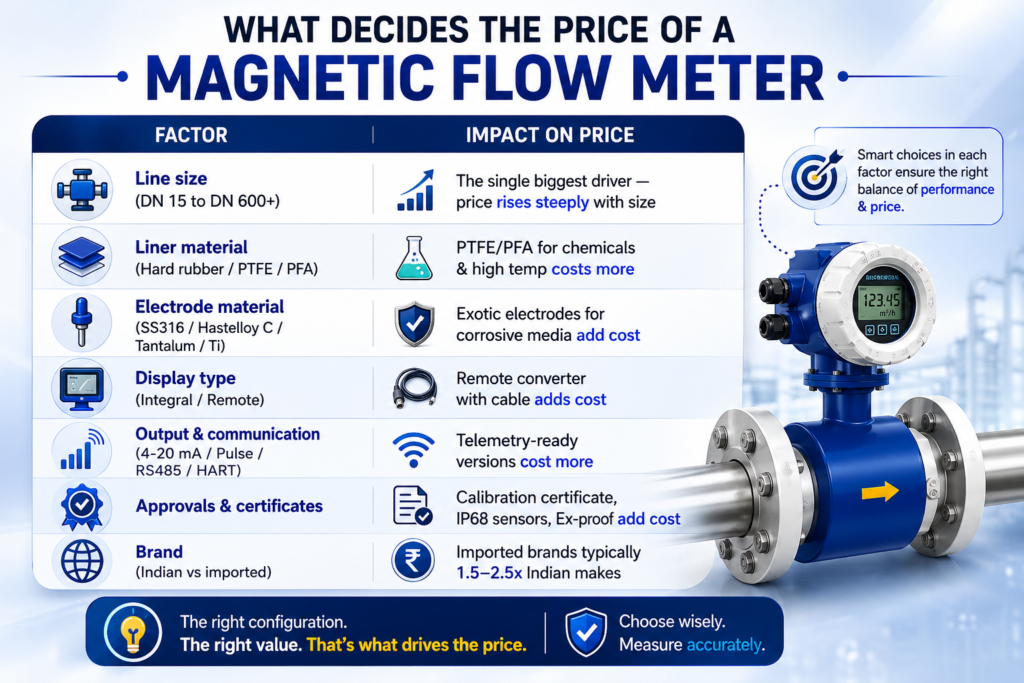

What Decides the Price of a Magnetic Flow Meter
| Factor | Impact on Price |
| Line size (DN 15 to DN 600+) | The single biggest driver — price rises steeply with size |
| Liner material (Hard rubber / PTFE / PFA) | PTFE/PFA for chemicals & high temp costs more |
| Electrode material (SS316 / Hastelloy C / Tantalum / Ti) | Exotic electrodes for corrosive media add cost |
| Display type (Integral / Remote) | Remote converter with cable adds cost |
| Output & communication (4-20 mA / Pulse / RS485 / HART) | Telemetry-ready versions cost more |
| Approvals & certificates | Calibration certificate, IP68 sensors, Ex-proof add cost |
| Brand (Indian vs imported) | Imported brands typically 1.5-2.5x Indian makes |
Approximate Magnetic Flow Meter Price India Ranges (2026)
Indicative market ranges for full-bore meters with standard liner and SS316 electrodes. Actual quotation depends on specification. Contact us for exact pricing.
| Line Size | Indian Make (Approx) | Imported / Premium (Approx) |
| DN 25 (1″) | ₹25,000 – ₹45,000 | ₹55,000 – ₹90,000 |
| DN 50 (2″) | ₹30,000 – ₹55,000 | ₹65,000 – ₹1,10,000 |
| DN 100 (4″) | ₹40,000 – ₹75,000 | ₹85,000 – ₹1,50,000 |
| DN 200 (8″) | ₹70,000 – ₹1,30,000 | ₹1,50,000 – ₹2,75,000 |
| DN 300+ (12″+) | ₹1,20,000 – ₹2,50,000+ | ₹2,50,000 – ₹5,00,000+ |
PTFE liner, Hastelloy electrodes, remote display, or IP68 submersible sensors can add 15-40% over these base ranges to the final electromagnetic flow meter price India 2026 quotation.
Electromagnetic Flow Meter Sizing: Where Most Buyers Overspend (or Underspend)
A magnetic flow meter should normally run at a flow velocity of 1 to 5 m/s (ideal 2-3 m/s). This single rule drives correct electromagnetic flow meter sizing — and the right meter size is often NOT the same as your pipe size.
Example: A 4″ line carrying 20 m³/hr of effluent runs at only ~0.7 m/s. A DN 100 meter here will read poorly at low flows. The correct selection is a DN 80 meter with reducers — which is also cheaper, and a good example of how proper sizing directly controls the magnetic flow meter price India you end up paying.
Sizing Checklist
- Minimum, normal, and maximum flow rate (m³/hr)
- Line size and available straight length (5D upstream / 3D downstream typical)
- Medium conductivity (must be > ~5 µS/cm — mag meters cannot measure oils, gases, DM water)
- Temperature & pressure (decides liner)
- Chemical compatibility (decides liner + electrode)
- Full pipe condition guaranteed? (mag meters need a full pipe)
Liner & Electrode Selection — Quick Guide
| Medium | Liner | Electrode |
| Water, sewage, effluent | Hard rubber | SS316 |
| Acids, alkalis, chemicals | PTFE / PFA | Hastelloy C |
| Slurry, abrasive media | Polyurethane / Neoprene | SS316 / Tungsten carbide tip |
| Hot media (> 80 °C) | PTFE | Per chemistry |
| Hydrofluoric acid, severe corrosives | PFA | Tantalum / Platinum |
Integral vs Remote Display — Which One?
Choose a remote converter when the sensor is in a chamber/pit, the line is underground, ambient temperature at the meter exceeds converter rating, or the display must be at operator eye level. For flooded pits, specify an IP68 sensor — this is a common and costly oversight in ETP installations, and it directly affects the final flow meter price India 2026 quoted to you.
Why Buy Through Machine Tools Centre
Buying a flow meter “online by price” is how plants end up with a meter that doesn’t match the pipe, the medium, or the velocity range. We carry out electromagnetic flow meter sizing against your actual process data before quoting, supply from trusted Indian and imported brands, and support installation, grounding (critical for mag meters), and commissioning. For wastewater and ETP applications specifically, read our companion guide on flow measurement for ETP discharge compliance.
Conclusion
In 2026, a correctly sized electromagnetic flow meter price India ranges anywhere from ₹25,000 for small utility lines to several lakhs for large process headers. The cheapest mistake-proofing you can do: share your flow range, line size, and medium with a supplier who sizes before they sell.
Send us your application details and we will give you a properly engineered quotation — usually the right size costs less than the wrong one.
