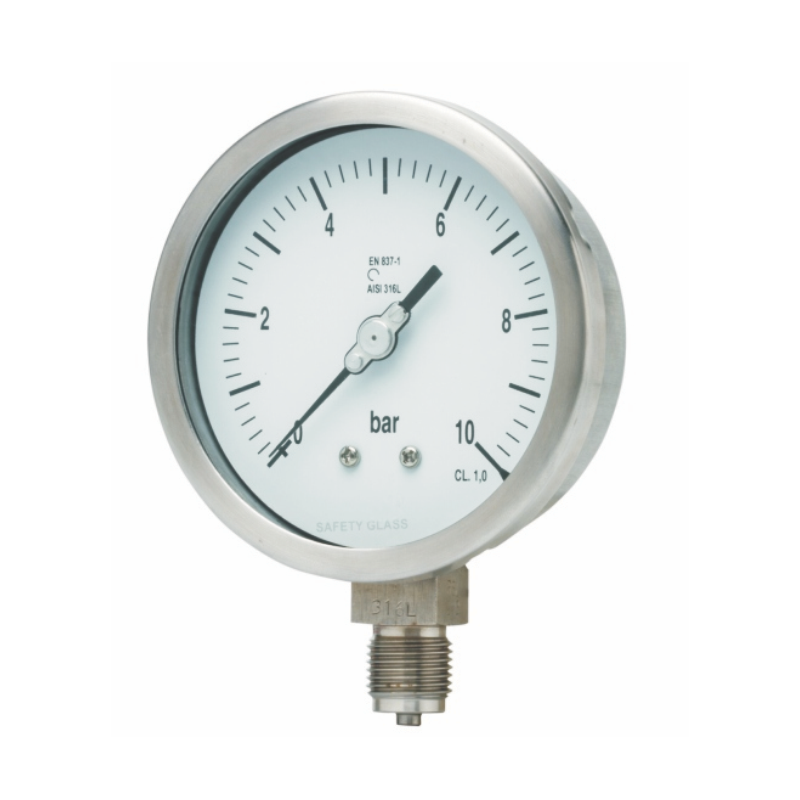

STAINLESS STEEL PRECISION PRESSURE GAUGE ZIPL01
Applications
- Liquid & gaseous mediums
- Corrosive environments
- Oil & Gas applications
- Chemical & Petrochemical
- Food & Beverages
- Nuclear power plants
Special features
- All stainless steel welded construction
- Follows IS 3624 / EN 837-1 / ASME B40.100
- Accuracy as per ±1.0% / CL 1.0 / Grade 1A
- Dry / Fillable / Liquid filled
Description
General
Design : EN 837-1
Accuracy : ±1.0% of full scale
Ambient temperature : -40…+65°C [without dampening liquid]
-40…+65°C [with dampening liquid filled silicon oil]
Service temperature : 300°C max.
Pressure limits : Steady pressure up to FS value
Fluctuating pressure up to 90% of FS value
Short time 130% of FS value for range up to 100 bar
Short time 115% of FS value for range above 100 bar
Weld joints : TIG argon arc welding
Protection class as per EN 837-1 : S1
Material of construction
Sensing element :Bourdon Tube [<100 bar : C – type , >100 bar : Helical]
Case & Ring material : AISI 304 SS [Bayonet type]
Bourdon tube & Shank : AISI 316L SS / Monel [Shank welded directly to case for rigidity in vibration field]
Movement mechanism : AISI 304 SS
Dial : Aluminum, black graduation on white background
Pointer : Micro-zero adjustable, aluminum, black powder coated Gaskets,
Blow off disc & filling plug : Neoprene / NBR
Window : Sheet glass / Shatterproof safety glass
