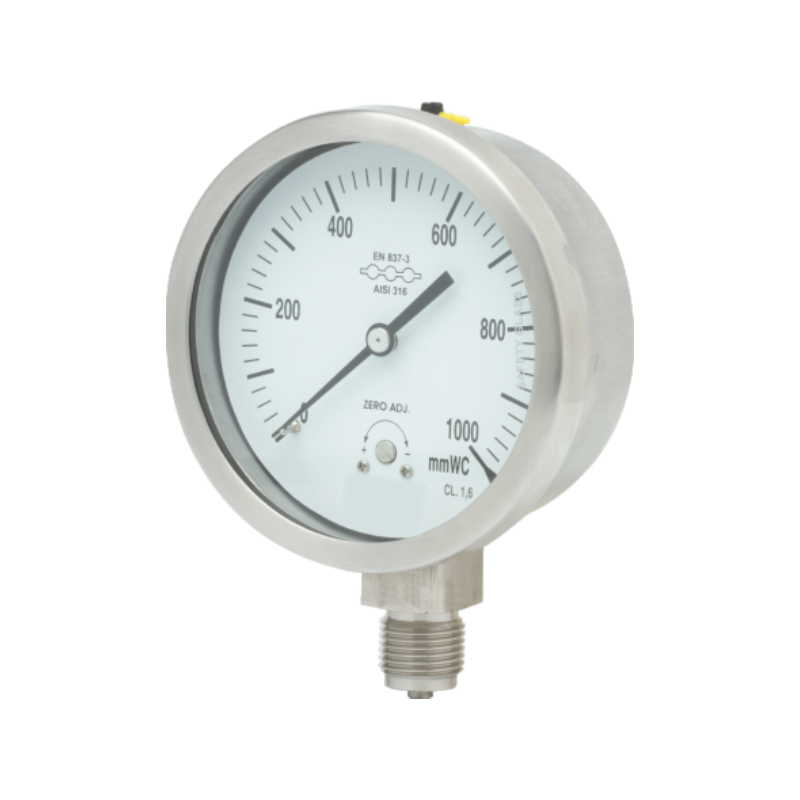

STAINLESS STEEL CAPSULE PRESSURE GAUGES ZIPL09-1
Applications
- Liquid & gaseous mediums
- Corrosive environments
- Oil & Gas applications
- Chemical & Petrochemical
- Food & Beverages
- Nuclear power plants
Special features
- Compact design
- Stainless steel measuring system
- Stainless steel case & ring
- Low pressure application (<0.6 bar)
- Zero adjustment on dia
Description
General
Design : EN 837-3
Accuracy : ±1.6% of full scale
Ambient temperature : -40…+65°C
Service temperature : 150°C max.
Pressure limits : Steady pressure up to 75% of FS value
No over-pressure
Weld joints : TIG argon arc welding
Material of construction
Sensing element : Capsule
Case & Ring material : AISI 304 SS (Bayonet type)
Capsule & Shank : AISI 316 SS ,
Movement mechanism : SS304 /COPPER ALLOY
Dial : Aluminum, black graduation on white background
with zero adjustment on dial
Pointer : Fixed, aluminum, black powder coated
Gaskets, Blow-off disc & filling plug : Neoprene / NBR
Window : Sheet glass / Shatterproof Safety Glass
Temperature effect
When temperature of the measuring system deviates from reference temperature (+20°C) :
max error ±0.4% / 10K of true scale value.
