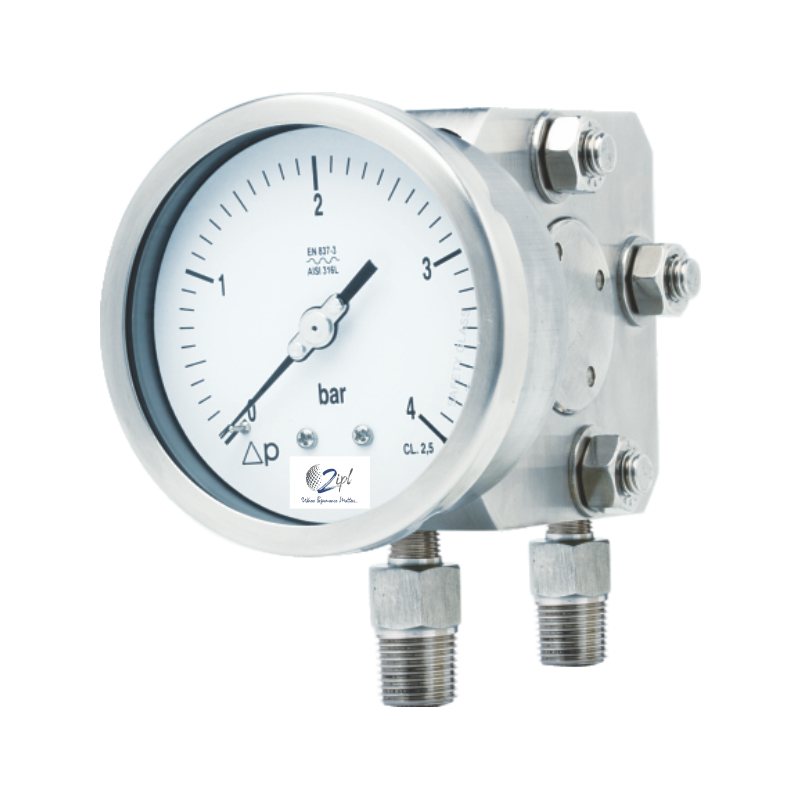

SINGLE DIAPHRAGM DIFFERENTIAL PRESSURE GAUGE ZIPL512
Applications
- Liquid & gaseous mediums
- Corrosive environments
- Oil & Gas applications
- Chemical & Petrochemical
- Food & Beverages
- Nuclear power plants
Special features
- All SS measuring system
- External Zero adjustment
- Electric contact version
- Dry / liquid filled
Description
General
Design : EN 837-3
Accuracy : ±2.5% of full scale
Ambient temperature : -40…+65°C [without dampening liquid]
: -20…+65°C [with dampening liquid]
Service temperature : 200°C max.
Static pressure limits :
2 bar up to 250 mmWC
6 bar above 250 to 600 mmWC
10 bar above 600 to 6000 mmWC
40 bar above 6000 mmWC to 4 bar
60 bar above
Material of construction
Sensing element : Diaphragm
Case & Ring material : AISI 304 SS (Bayonet type)
Diaphragm : AISI 316L SS
Chamber : AISI 304 SS
Fastener : AISI 304 SS
Movement mechanism : AISI 304 SS
Dial : Aluminum, black graduation on white background
Pointer : Micro-zero adjustable, aluminum, black powder coated
Gaskets & filling plug : Neoprene
Window : Shatterproof Safety Glass
Temperature effect
When temperature of the measuring system deviates from reference temperature (+20°C) :
max error ±0.4% / 10K of true scale value.
