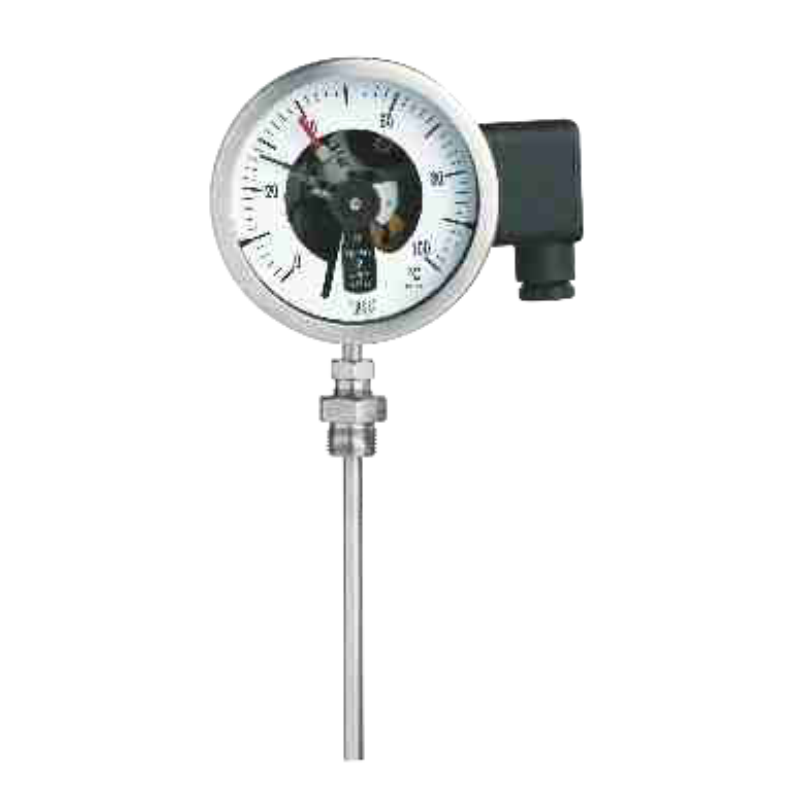

GAS FILLED TEMPERATURE GAUGE WITH ELECTRIC CONTACT ZIPL53-1
Applications
- Liquid & gaseous mediums
- Corrosive environments
- Oil & Gas applications
- Chemical & Petrochemical
- Food & Beverages
- Nuclear power plants
Special features
- All stainless steel welded construction
- Follows EN 13190 / ASME B40.200
- Accuracy as per Class 1
- Dry / Fillable / Liquid filled
Description
General
Design : EN 13190
Accuracy : ±1.0% of full scale
Ambient temperature : -20…+60°C
Storage temperature : -50…+70°C without liquid dampening
-20…+60°C with liquid dampening
Over range limits : 110% full scale
Stem pressure rating : 25 bar (Without thermowell)
Weld joints : TIG argon arc welding
Material of construction
Sensing element : Inert Gas Filled sensor bulb
Case & Ring material : AISI 304 SS
Stem material : AISI 316 SS
Process connection material : AISI 316 SS
Dial : Aluminum, black graduation on white background
Pointer : Micro-zero adjustable, aluminum, black powder coated
Gaskets : Neoprene / NBR
Window : Sheet glass
Electrical Termination: 4 Pin Din connector
