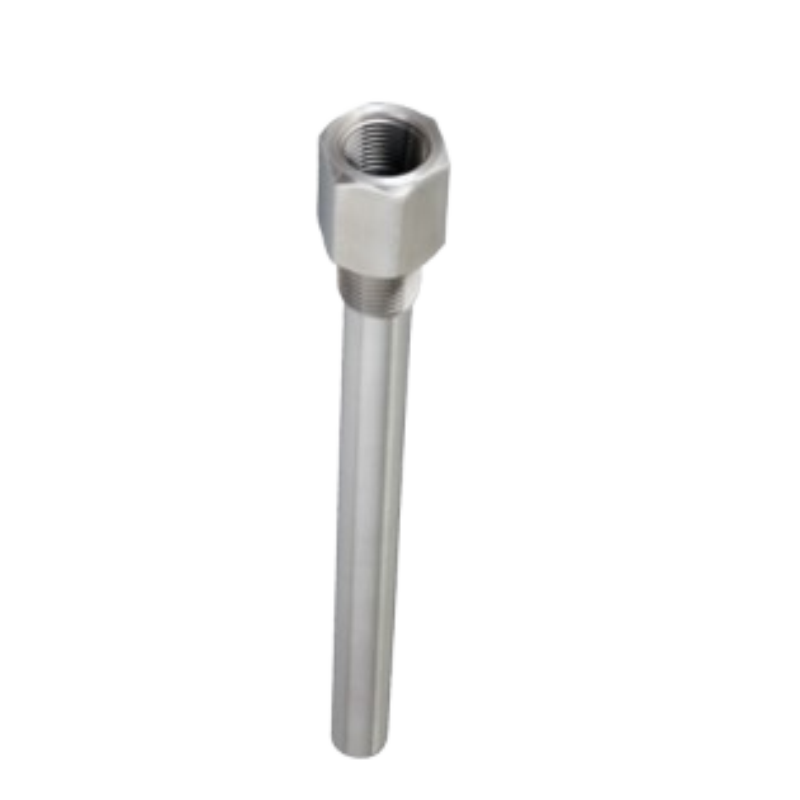

FABRICATED THREADED THERMOWELL ZIPL33-1
Applications
- HVAC Industries
- Utilities
- Chemical plants
- Pharmaceutical
- Engineering plants
Special features
- abricated from pipe with a welded end cap
- nstalled directly into the process with the help of threads
- Ideal for use in longer length tank & vessels
- Economic version
Description
General
Thread design : ANSI B1.20.1 / BS EN ISO 228-1
Storage temperature : -40…+65°C
Service temperature : As per material properties
Weld joints : TIG argon arc welding
Material of construction
Head : ASTM A105 / AISI 304 SS / AISI 316 SS / AISI 316L SS
AISI 310 SS / AISI 321 SS / AISI 446 SS
Inconel 600 / Alloy 800 / Alloy 800H
Hastelloy C-276 / Inconel 625 / Inconel 825
Well : ASTM A105 / AISI 304 SS / AISI 316 SS / AISI 316L SS
AISI 310 SS / AISI 321 SS / AISI 446 SS
Inconel 600 / Alloy 800 / Alloy 800H
Hastelloy C-276 / Inconel 625 / Inconel 825
