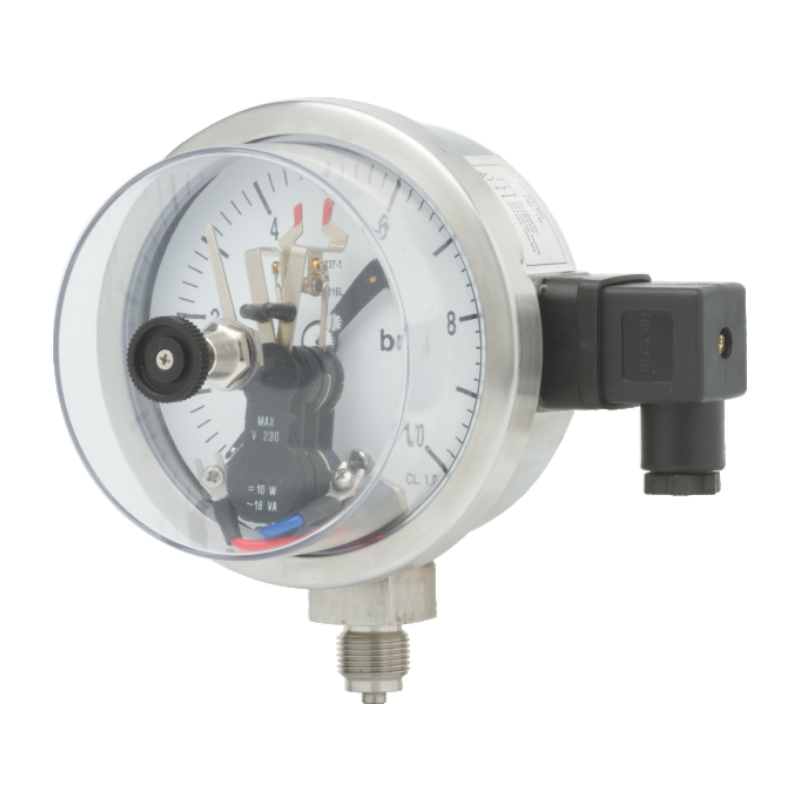

ELECTRIC CONTACT PRESSURE GAUGE – DOME STYLE ZIPL06
Applications
- Pumps & motor controls
- Water treatment plants
- Hydraulic & pneumatics
- Chemical & petrochemicals
- Pharmaceutical industries
- HVAC & compressor industries
- Refrigeration
Special features
- All SS measuring system
- Socket-case, direct welded
- CE marked contacts
- Liquid filled versions
Description
General
Dial size : DN100 / DN150
Range : -1 – 0 – 1,600 bar
Mounting pattern : Direct, Bottom connection
Process connection : ½” NPT (M) / ½” BSP (M)
Ingress protection : IP 65
Execution : Dry / Dry but fillable
Switch : Make contact (1NO)
Electrical termination : 4 pin PG 13.5 connector
Material of construction
Dielectric oil
Accuracy : ±2.0% of full scale
Gasket, Blow off disc & filling plug : NBR / Viton
Dampening liquid : Dielectric oil
Temperature effect
When temperature of the measuring system deviates from reference temperature (+20°C) :
max error ±0.4% / 10K of true scale value.
