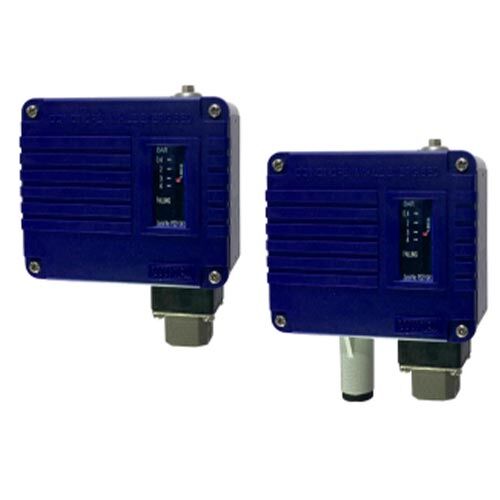

Compact High Value Pressure Switch Model DM600 series (Wika)

Applications

• Pumps and compressors for lubrication

• Industrial Hydraulics

• Special purpose machine

• Power generation

Special features

•  Adjustable switch differential to realise flexible on/off control
•  Robust aluminium enclosure
•  Switch point repeatability ±1% of FSR for reliable switching
•  Upto 2 possible positions for electrical connection
•  High-quality micro switches with long service life

Description

The model PS-601, 602 pressure switch has been designed for control and monitoring applications.
The measuring element is a fully welded diaphragm made of stainless steel 316L. This corrosion-resistant
pressure switch is suitable for a broad range of media used in the process industry.
The enclosure made of a high-grade aluminium alloy with which the pressure switch can withstand the harsh
operating conditions of the process industry. WIKA data sheet PV 35.60

WIKA Data sheet PV 35.60 ∙ 11/2021 Page 1 of 5 High static pressure with diaphragm sealed sensor
elements enable to meet a variety of applications in oil, gas, power, steel and petrochemical industries.
The model PS-601, 602 has a high switch point repeatability of ±1%, which enables reliable switching.
The switch point can be specified on site with external adjustment option. Adjustable switch differential enable
to realise flexible on/off controls, this wide setting range is often needed for the on/off control mode of cyclic applications.
