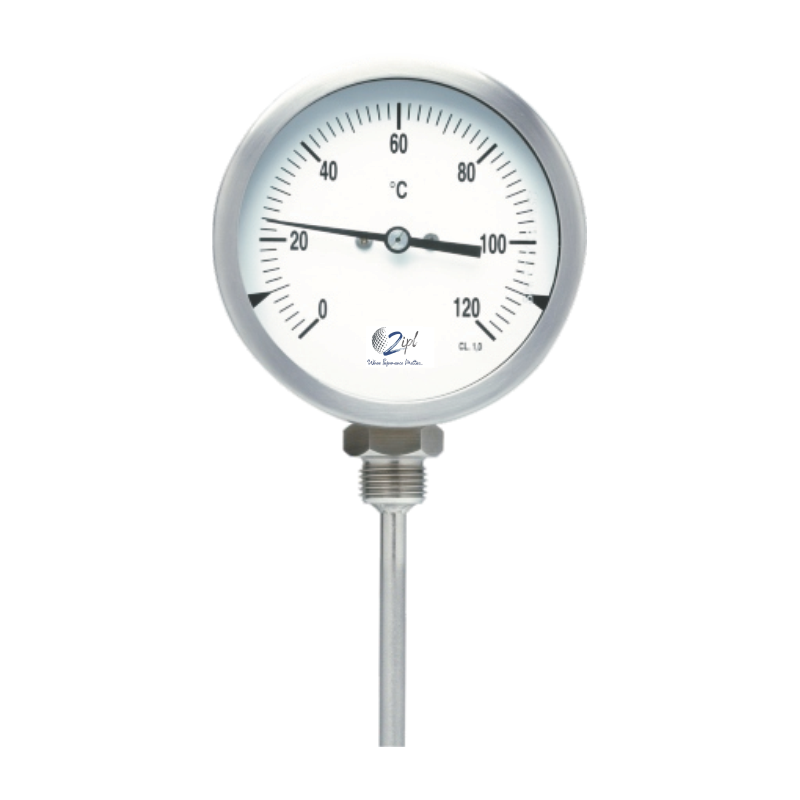

BIMETALLIC TEMPERATURE GAUGE ZIPL50-1
Applications
- Liquid & gaseous mediums
- Corrosive environments
- Oil & Gas applications
- Chemical & Petrochemical
- Food & Beverages
- Nuclear power plants
Special features
- All stainless steel welded construction
- Follows EN 13190 / ASME B40.200
- Accuracy as per Class 1
- Dry / Fillable / Liquid filled
Description
General
Design : EN 13190
Accuracy : ±1.0% of full scale
Ambient temperature : -20…+60°C
Over range limits : 110% full scale
Stem pressure rating : 25 bar (Without thermowell)
Weld joints : TIG argon arc welding
Material of construction
Sensing element : Coiled bimetal strip
Case & Ring material : AISI 304 SS
Stem material : AISI 316 SS
Process connection material : AISI 316 SS
Dial : Aluminum, black graduation on white background
Pointer : Zero adjustable, aluminum, black powder coated
[Fix pointer for 50 mm]
Gaskets : Neoprene / NBR
Window : Sheet glass
Temperature effect
When temperature of the measuring system deviates from reference temperature (+20°C):
max ±0.4% / 10K of full scale value.
