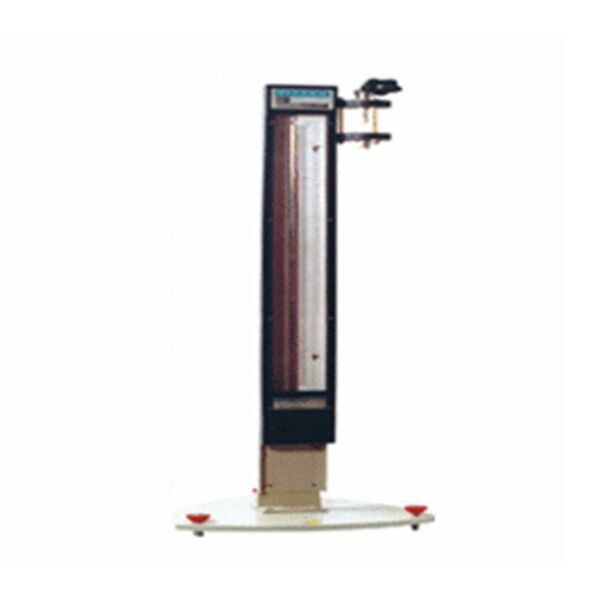

Absolute Pressure Mercury filled manometer Model FITZER/UAPI/76 (FITZER)

PRESSURE MEASURING INSTRUMENTS

FITZER’ Single Limb Well Type Direct Reading Manometer for the precision measurement of pressure, vacuum, differential pressure flow and liquid level measurement. The well type single limb manometer are accurate & dependable as well as highly versatile for many applications. The Manometer is available as either single tube or multiple tube. All scales are graduated to correct for the drop in the well level.

General Specification

Casing: M.S. /Aluminimum Casing From Three Side And Aluminium
Cover With Transparent Acrylic Front.
Metering Tube: Special Uniform Bore Thick Walled Borosilicate Glass Tube
Finishing: Industrial Grade Painted / Powder Coated
Packing: Teflon / Neoprene.
Scale: Scale Milky White Pvc With Black Colour Lining And Figures
Range: Mm Of Wc/ Mm Of Hg / Inches /Mbar / Kpa / Pa Or
Calibrated Scale Using With Different Sp. Gr. Fluid
Manometric Fluid: Water / Mercury / Atb Liquid Sp. Gr. 2.96
Wetted Part: M.S., Aluminimum, Ss, Pp, Pvc,
End Connection 1/4″ Bsp /Npt (F) Or Nozzle Type
Mounting: Wall Panel / Flush Or Stand Mounting
Arrangement: Drain Plug, Filling Plug, Zero Adjusting Knob
Accuracy: +/-0.25%, +/- 0.1% Of F.S.D. Or Better
Test Pressure: 1.5 Time Of Operating Pressure
Max, Temperature: 90 Deg C, Extra Depend On Manometric Fluid
